220 HP
164 kW

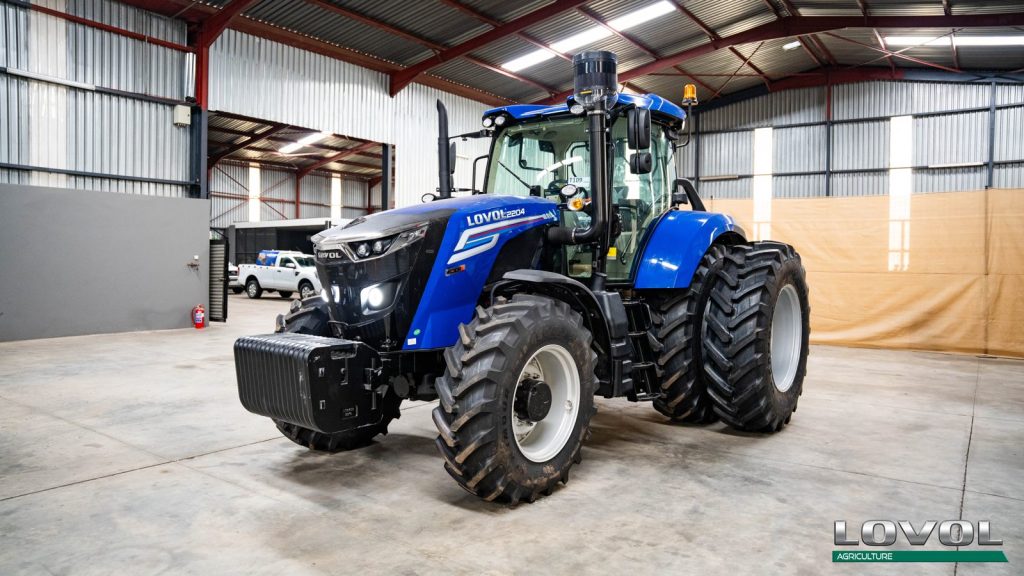

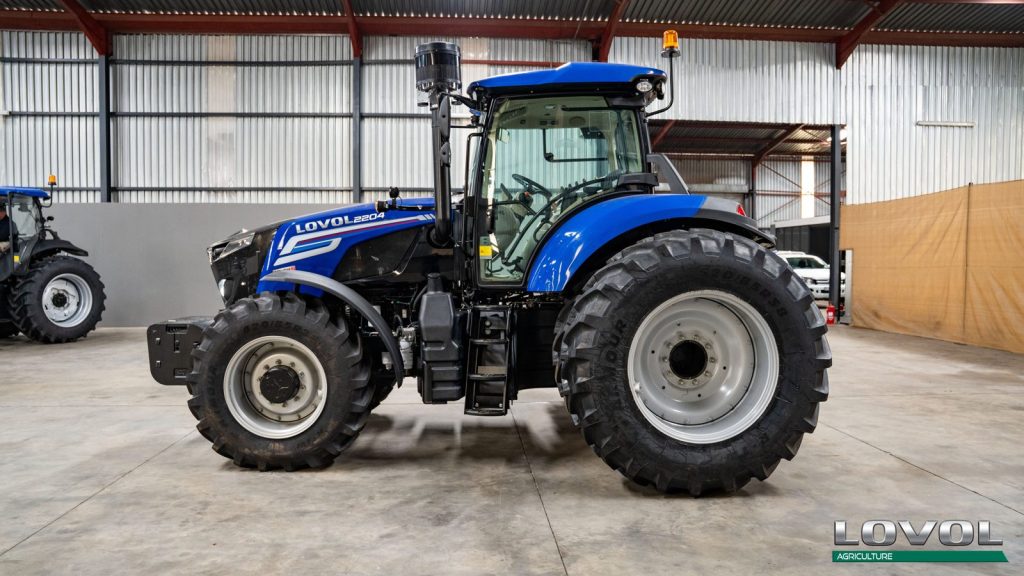

LOVOL TR2204

220 HP of relentless capability for the biggest jobs
Heavy primary tillage, large planters, air seeders and contracting
Download brochure
Request a quote
220 HP
Rated power
16F + 16R
Transmission
200 L/min
Hydraulic flow
Stage IIIA
Emission

Overview

The LOVOL TR2204 is the muscle of the TR-Series: a 220 HP Weichai WP7H engine, 923 N-m of torque and a lift capacity of over 5,600 kg. With 140 L/min hydraulic flow, four pairs of remotes and dual rear wheels, it is built for the biggest implements.

220 HP 6-cylinder engine with huge torque
16F+16R heavy-duty transmission
140 L/min hydraulics and dual-wheel option

Gallery

Specifications

Horsepower
220 HP
Engine model
Weichai WP7H, 7.47 L, 6-cyl
Emission standard
Stage IIIA
Gears
16F + 16R
Shift mode
Synchronized shift
Speed range
2.8 to 33.42 km/h
Hydraulic flow
200 L/min
Wheelbase
2,727 mm
Structure weight
7,050 kg

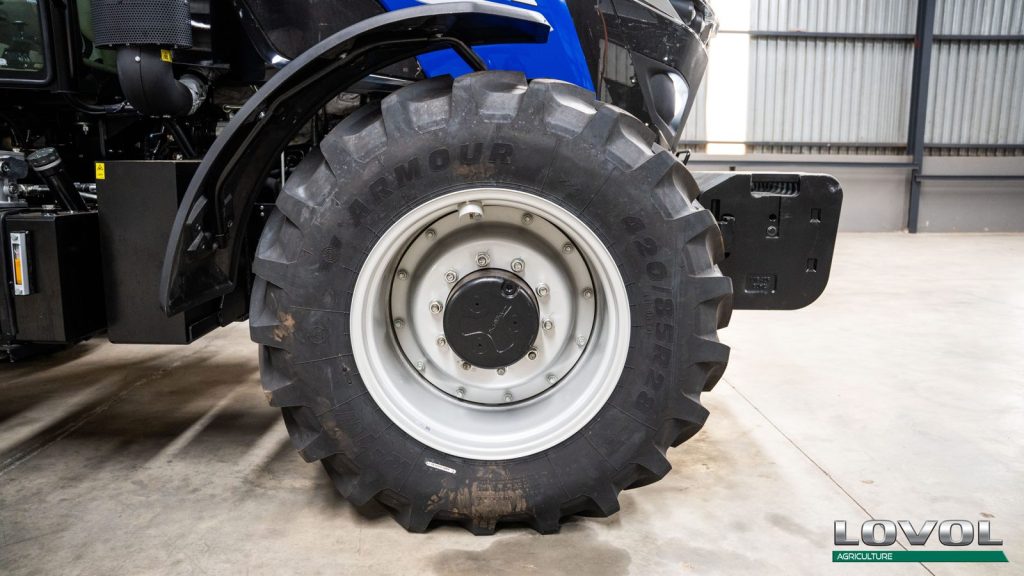

Front wheels
420/85R28
Rear wheels
520/85R38 (dual rear)
Max operating mass
7,500 kg
