LOVOL Agriculture · Harvesters

LOVOL GK120

250 HP186.8 kW12 kg/s feed

A self-propelled grain harvester built for South African wheat, maize and soybean farming — high-capacity, full-feeding threshing with the local parts and service backing of Dura.

Request a quote →WhatsApp usDownload brochure

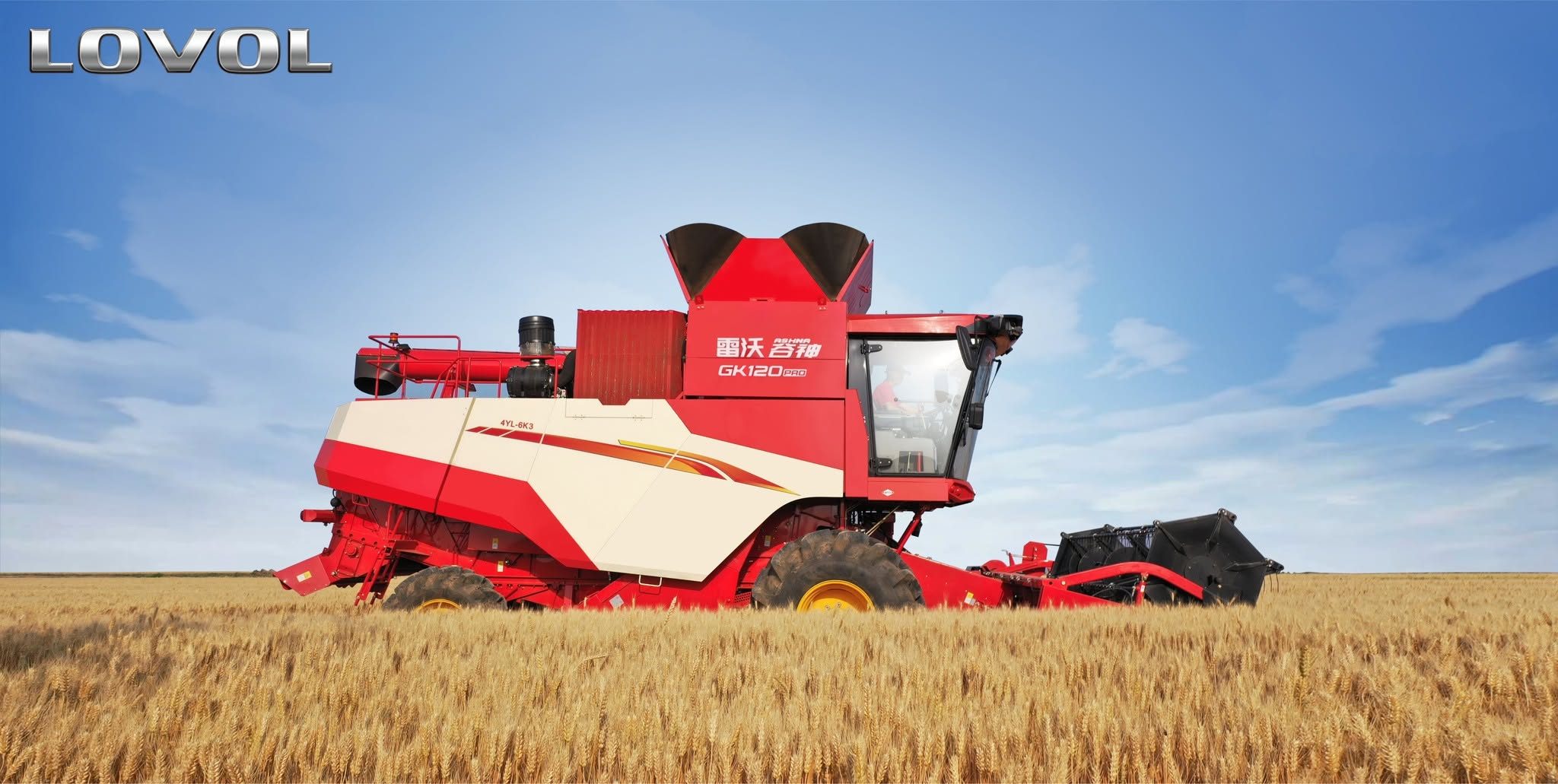

LOVOL GK120 harvester
186.8 kWRated power
12 kg/sFeed rate
7.5 m³Grain tank
500 LFuel capacity
7000 mmWheat header
Stage IIIEmission

Full-feeding capacity, built to keep moving

The GK120 is a self-propelled, wheel-type combine for direct grain harvesting. A 186.8 kW Weichai WP7G260E301 six-cylinder engine drives a high-capacity 12 kg/s longitudinal axial-flow threshing system, moving through wheat, maize and soybeans with a 7.5 m³ grain tank and 4 800 mm unloading height for fast, continuous harvesting.

Hydraulic front-wheel and mechanical rear-wheel drive (4WD), with a Linde 105 cc HST giving strong field grip and road transfer up to 20 km/h between lands.

  • Axial-flow threshingLongitudinal axial flow, 660 × 3 015 mm drum for gentle, thorough separation.
  • 4WD tractionHydraulic FWD + mechanical RWD with Linde 105 cc HST; 370 mm ground clearance.
  • Comfort cabPositive-pressure sealed cab with heating and air-conditioning; integrated control panel with 3-channel camera and 8-channel alarm.
  • Multi-cropWheat, maize, soybeans and more. Wheat header 7 000 mm; corn header 6-row / 750 mm.

Dimensions & performance

EngineWeichai WP7G260E301 · 6-cyl · 2 200 r/min
Productivity1.0 – 2.0 ha/h
Operating speed1.05 – 7.90 km/h
Wheelbase / track3 720 mm / 2 820 · 2 600 mm
With 5.34 m header9 520 × 5 700 × 4 100 mm · 13 500 kg
With 7 m header9 520 × 7 300 × 4 100 mm · 15 650 kg
Warranty1 000 hours / 12 months
Request a quote on the GK120 →

GK120 gallery
