150 HP
112 kW

LOVOL TR1504

150 HP heavy-duty muscle for large-scale fieldwork
Large-scale tillage, planting, spraying, grain-cart and transport work
Download brochure
Request a quote
150 HP
Rated power
28F + 28R creeper
Transmission
75 L/min
Hydraulic flow
Stage IIIA
Emission

Overview

The LOVOL TR1504 brings 150 HP of Weichai WP6 power to large-scale fieldwork. A 16F+16R creeper transmission, strong lift capacity and 75 L/min hydraulic flow handle heavy tillage, planting and transport with ease.

16F+16R synchronized transmission with creeper
75 L/min hydraulics for heavy implements
Reinforced chassis built for intensive tillage

Gallery

Specifications

Horsepower
150 HP
Engine model
Weichai WP6, 6.75 L, 6-cyl
Emission standard
Stage IIIA
Gears
28F + 28R creeper
Shift mode
Synchronized shift
Speed range
2.73 to 32.64 km/h
Hydraulic flow
75 L/min
Wheelbase
2,727 mm
Structure weight
6,050 kg
Front wheels
480/65R28

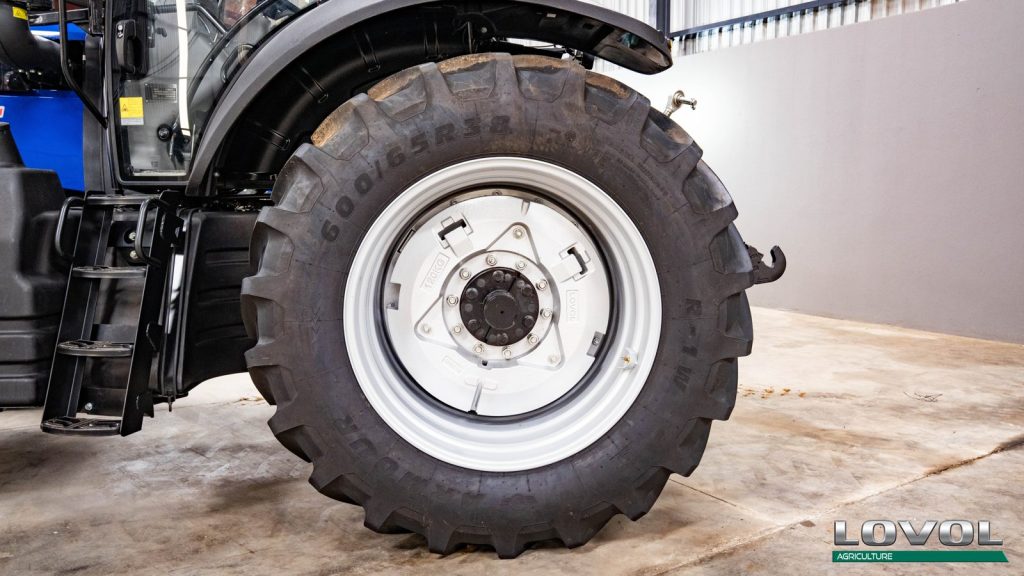

Rear wheels
600/65R38 (dual rear option)
Max operating mass
6,560 kg
