300 HP
223 kW

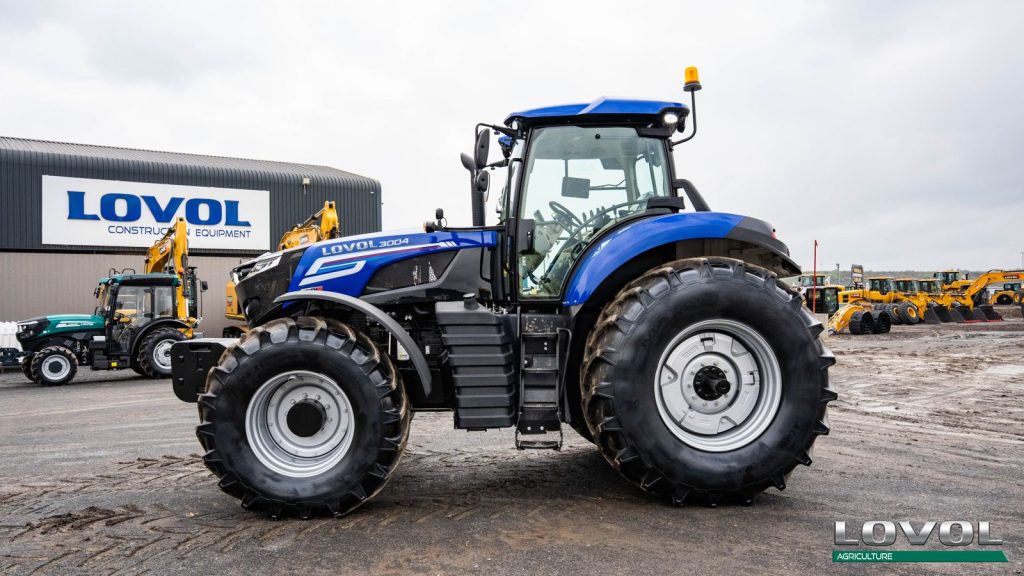

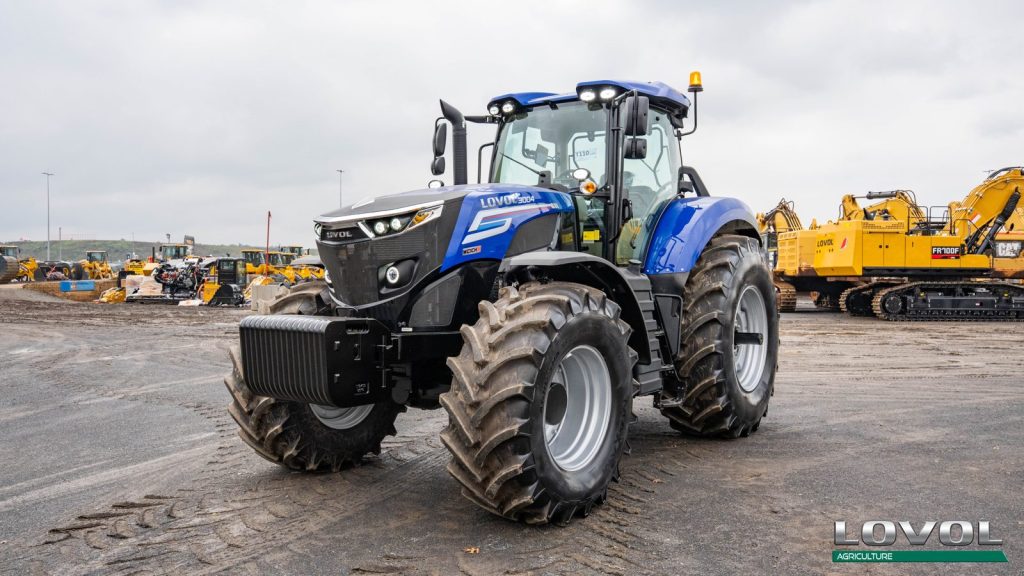

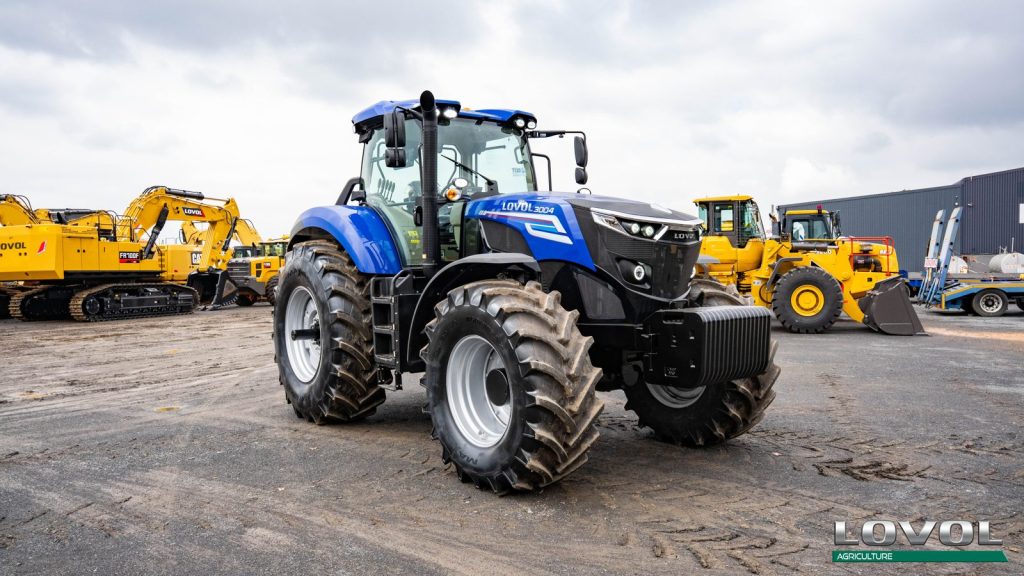

LOVOL TN3004

The 300 HP flagship for very large-scale operations
Very large-scale tillage, air seeders, deep ripping and commercial contracting
Download brochure
Request a quote
300 HP
Rated power
18F + 9R
Transmission
200 L/min
Hydraulic flow
Stage IIIA
Emission

Overview

The LOVOL TN3004 is the flagship of the range: a 9.5 L Weichai WP10H delivering 300 HP and 1,375 N-m of torque, power reversing with Power Hi-Lo, electronic lift control beyond 8,600 kg, and a massive 200 L/min hydraulic system.

300 HP 6-cylinder with power reversing + Hi-Lo
18F+9R power-shift transmission
200 L/min hydraulics and 600 L fuel tank

Gallery

Specifications

Horsepower
300 HP
Engine model
Weichai WP10H, 9.5 L, 6-cyl
Emission standard
Stage IIIA
Gears
18F + 9R
Shift mode
Power Shuttle
Speed range
3.3 to 40 km/h
Hydraulic flow
200 L/min
Wheelbase
3,185 mm
Structure weight
10,000 kg
Front wheels
600/70R30
Rear wheels
650/85R38 (dual rear)
Max operating mass
10,840 kg
