50 HP
37 kW

LOVOL TB504

50 HP utility workhorse for smallholdings and mixed farms
Smallholdings, vegetable production, livestock operations and light fieldwork
Download brochure
Request a quote
50 HP
Rated power
12F + 12R
Transmission
32 L/min
Hydraulic flow
Stage II
Emission

Overview

The LOVOL TB504 is a rugged, easy-to-run 50 HP utility tractor. Its 12F+12R synchronized transmission, mechanical 4WD and simple serviceability make it a dependable workhorse for smaller farms, smallholdings and mixed operations.

12F+12R synchronized shift with mechanical shuttle
Rugged 498BT engine, simple to run and maintain
ROPS or cab, with a dependable low running cost

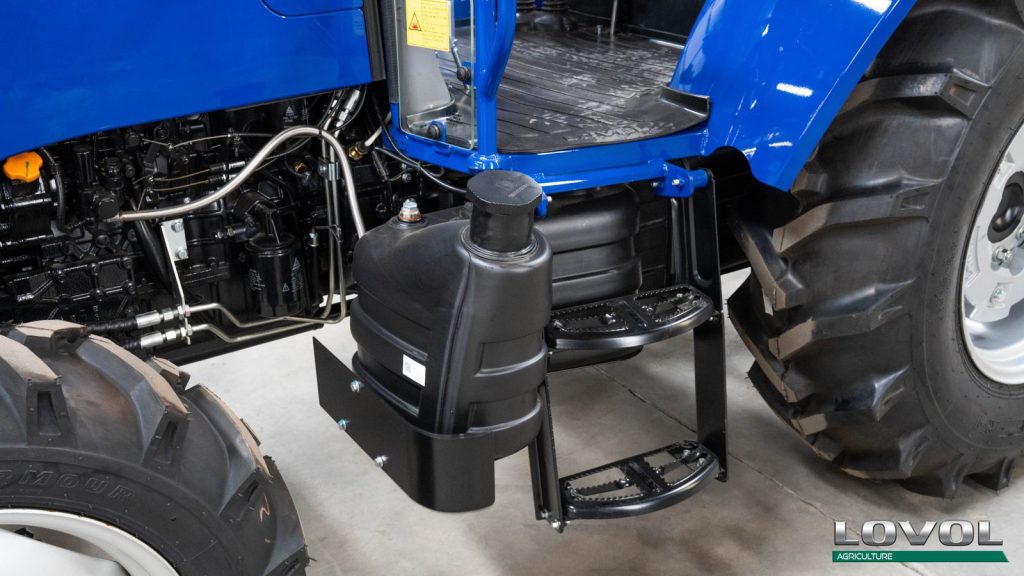

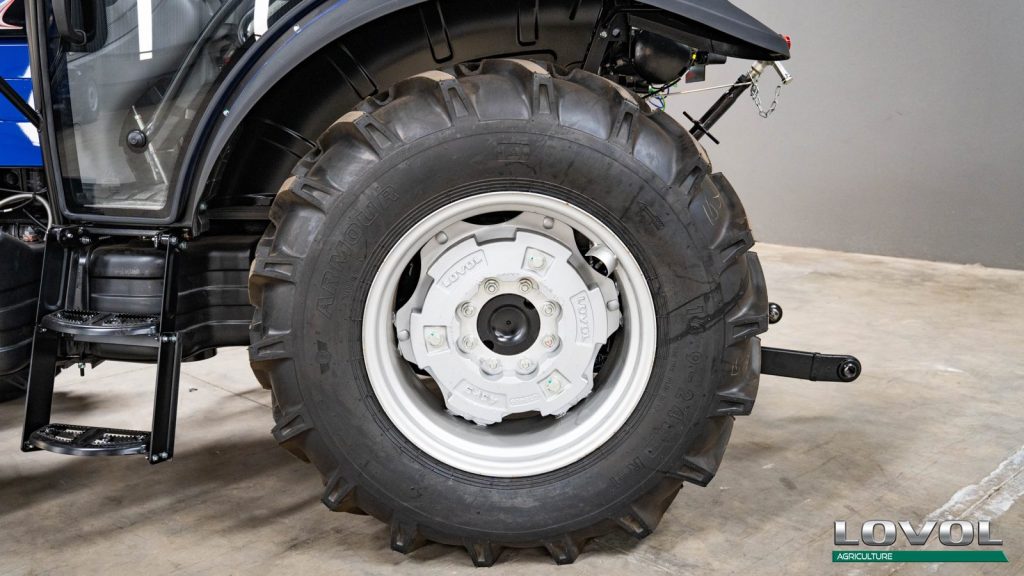

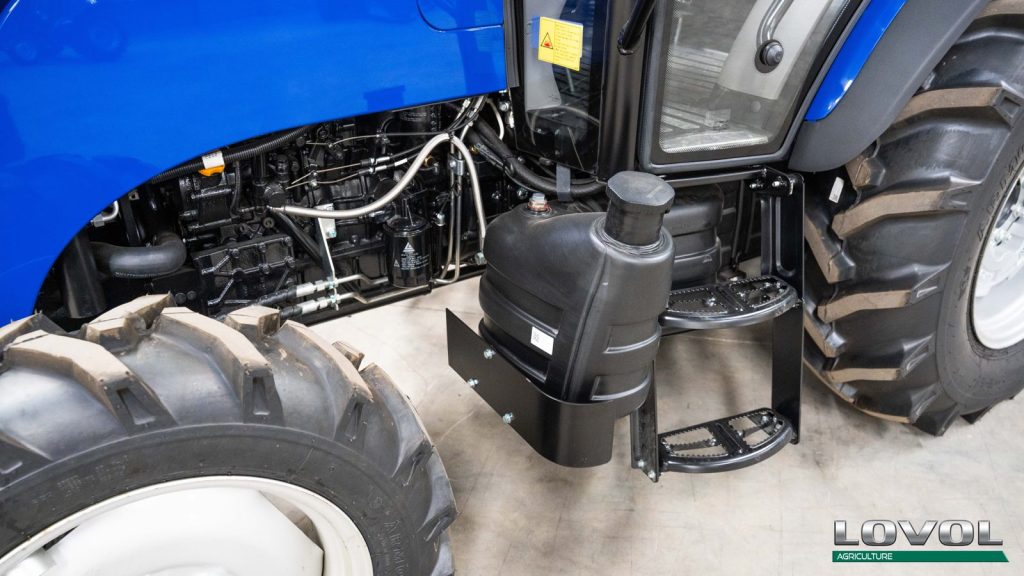

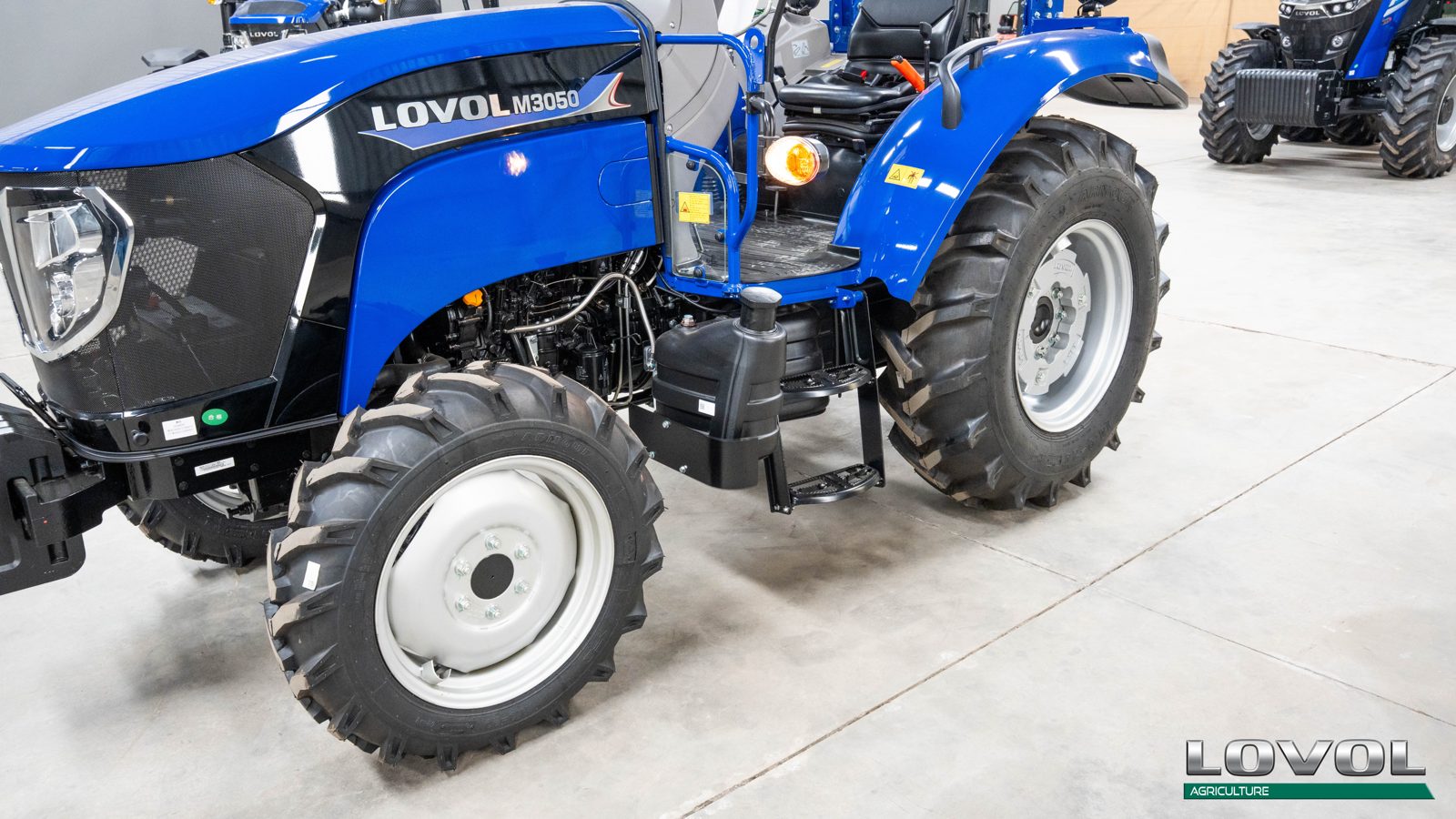

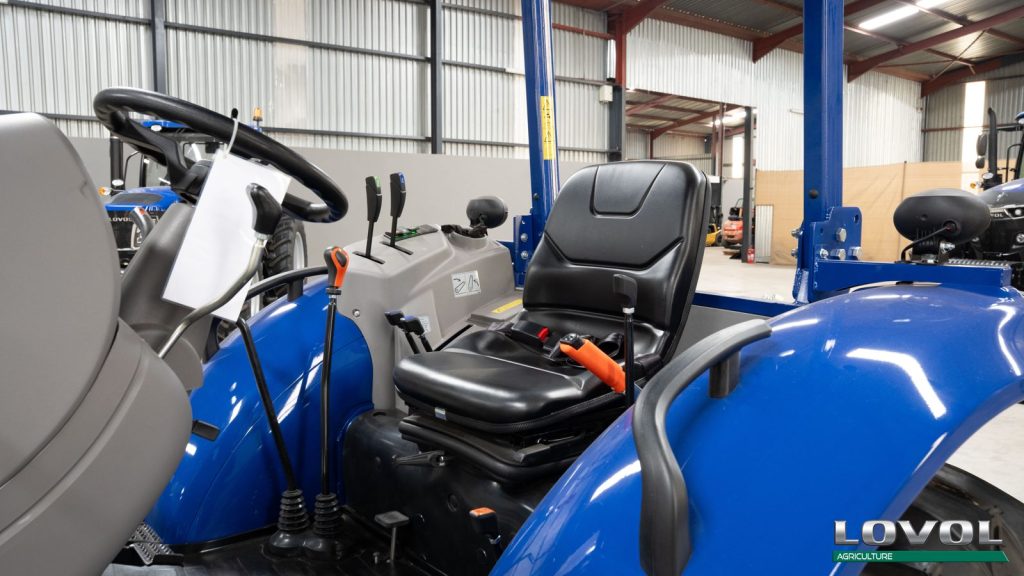

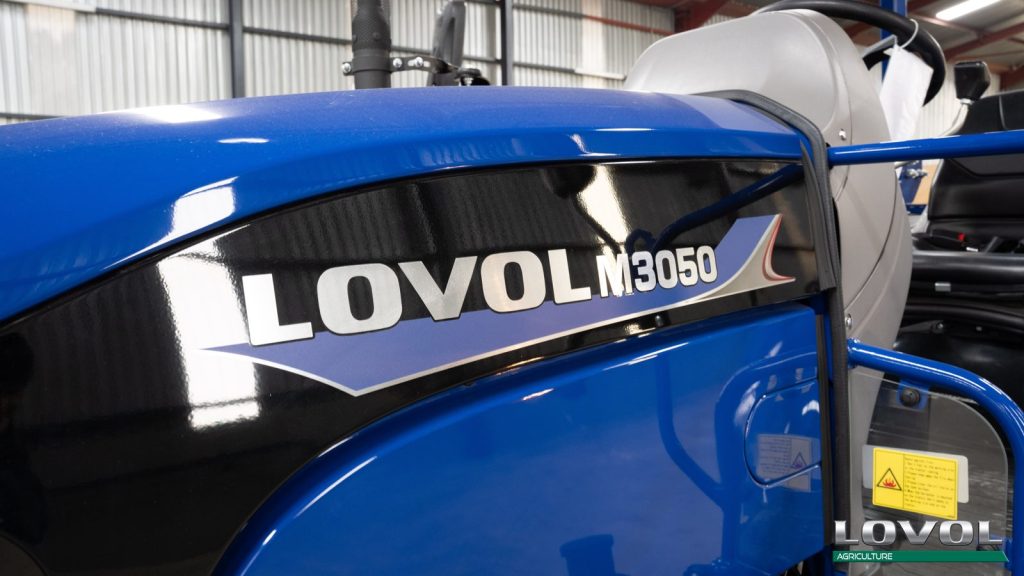

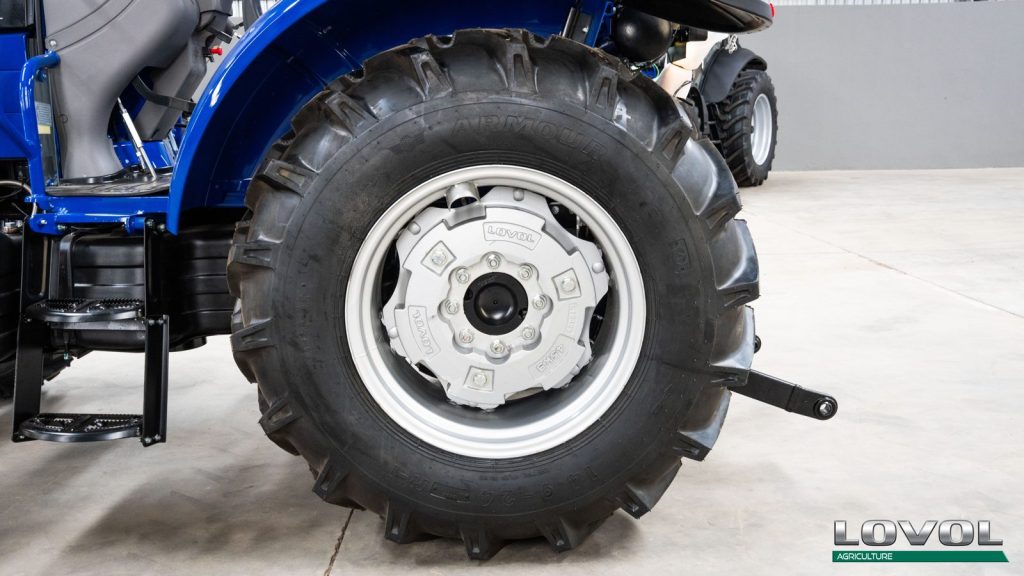

Gallery

Specifications

Horsepower
50 HP
Engine model
Xinchai A498BT, 3.168 L, 4-cyl
Emission standard
Stage II
Gears
12F + 12R
Shift mode
Synchronized shift
Speed range
2.37 to 38.46 km/h
Hydraulic flow
32 L/min
Wheelbase
1,990 mm
Structure weight
2,320 kg (ROPS)
Front wheels
8.3-20
Rear wheels
14.9-24
Max operating mass
2,490 kg (ROPS)
