100 HP
75 kW

LOVOL F4100

100 HP orchard and vineyard specialist, built for narrow rows
Orchards, vineyards, vegetable farming, nurseries and confined-space work
Download brochure
Request a quote
100 HP
Rated power
16F + 16R
Transmission
50 L/min
Hydraulic flow
Stage II
Emission

Overview

The LOVOL F4100 orchard model delivers 100 HP of reliable power in a compact 1,440 mm-wide package. A 16F+16R synchronized transmission gives a wide gear range, while the super steering axle delivers a tight turning radius for exceptional manoeuvrability between rows.

16F+16R synchronized transmission with a wide gear range
Just 1,440 mm wide for tight orchard and vineyard rows
Air-conditioned cab with 50 L/min hydraulic flow

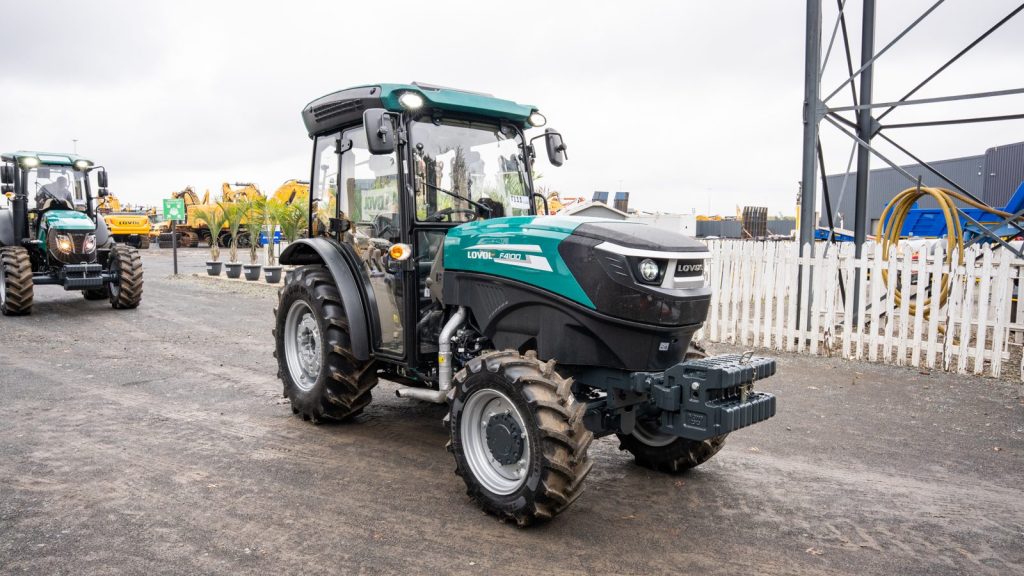

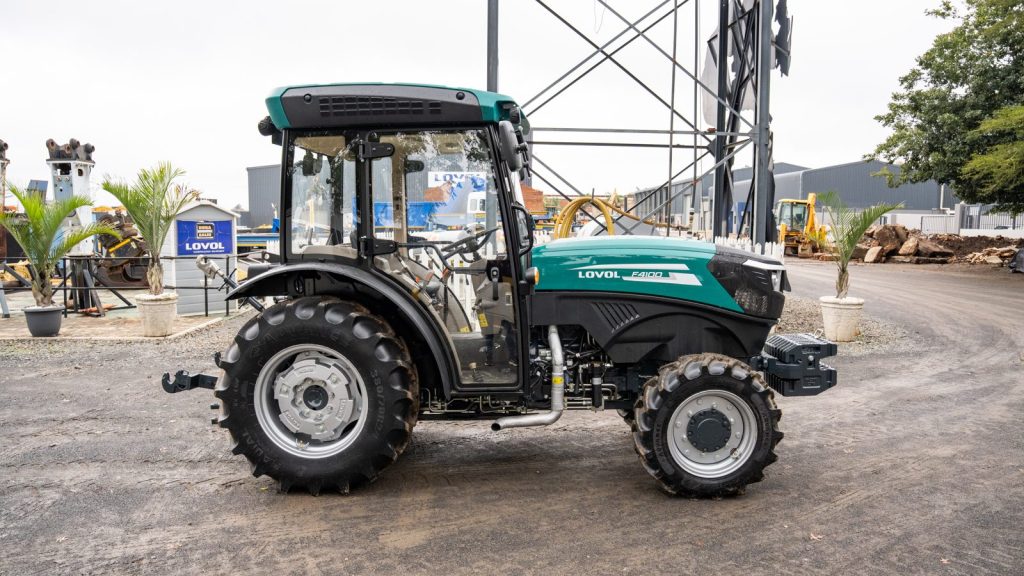

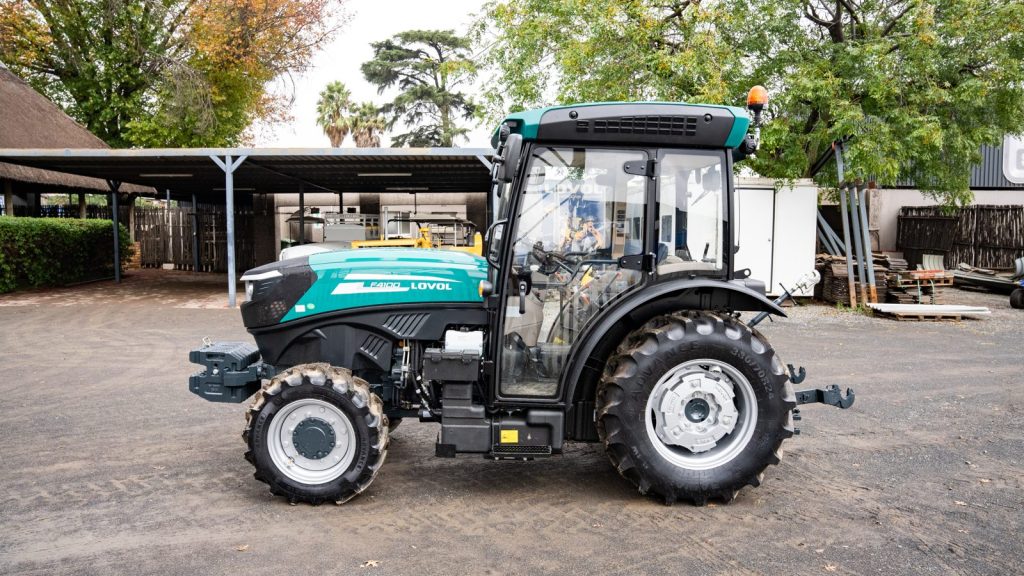

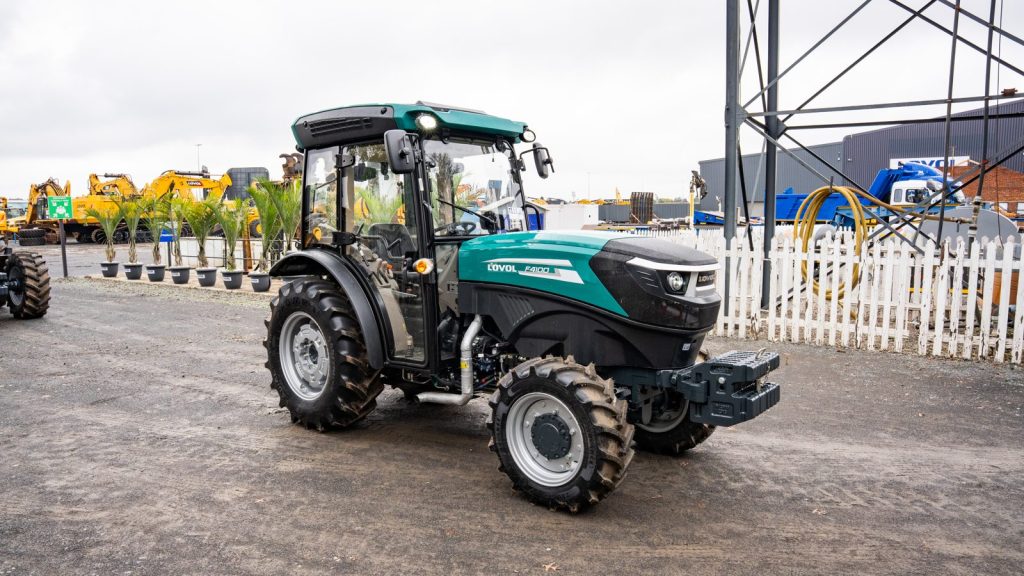

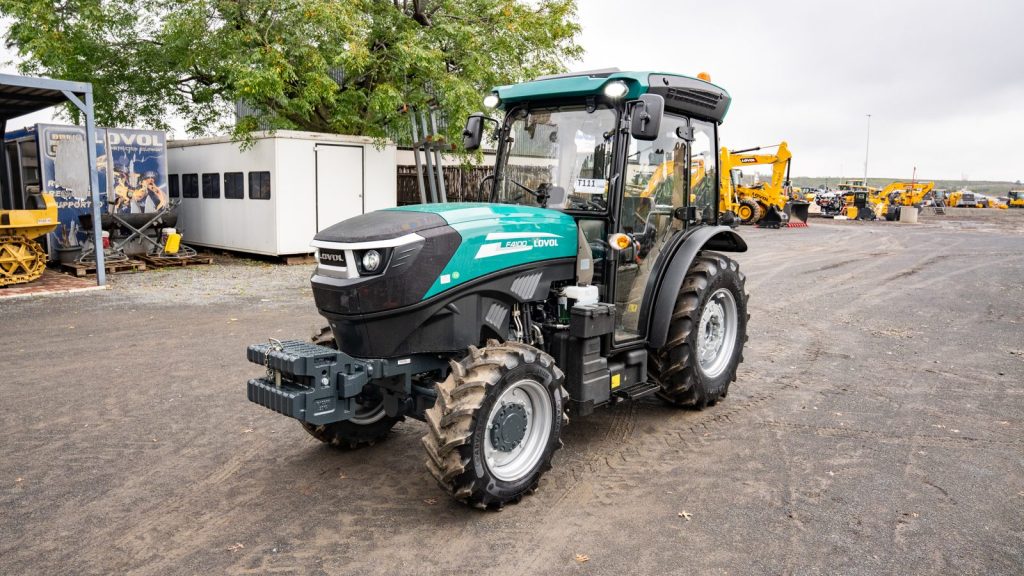

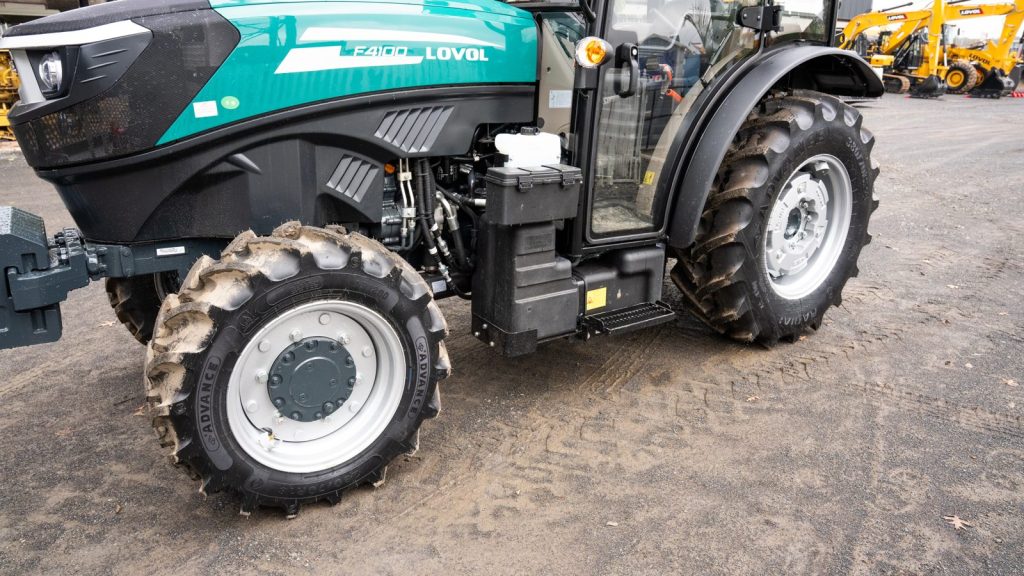

Gallery

Specifications

Horsepower
100 HP
Engine model
Xinchai 4D35, 3.5 L, 4-cyl
Emission standard
Stage II
Gears
16F + 16R
Shift mode
Synchronized shift
Speed range
1.05 to 39.9 km/h
Hydraulic flow
50 L/min
Wheelbase
2,250 mm
Structure weight
2,685 kg (ROPS)
Front wheels
280/70R18
Rear wheels
380/70R24
Max operating mass
2,925 kg (ROPS)

Watch the F4100 in action
